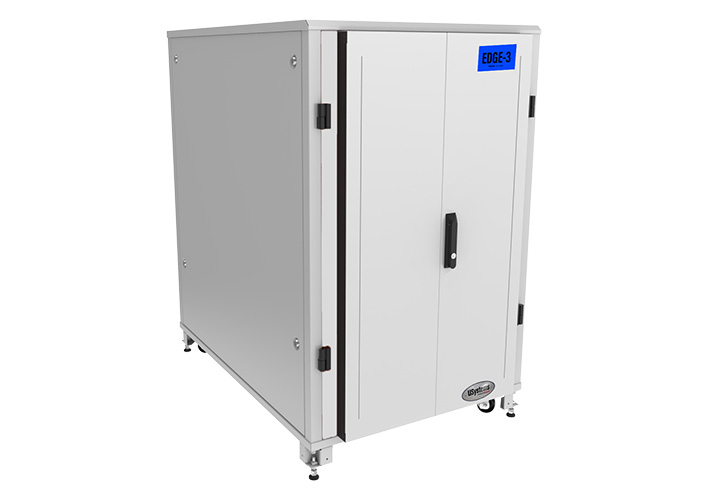

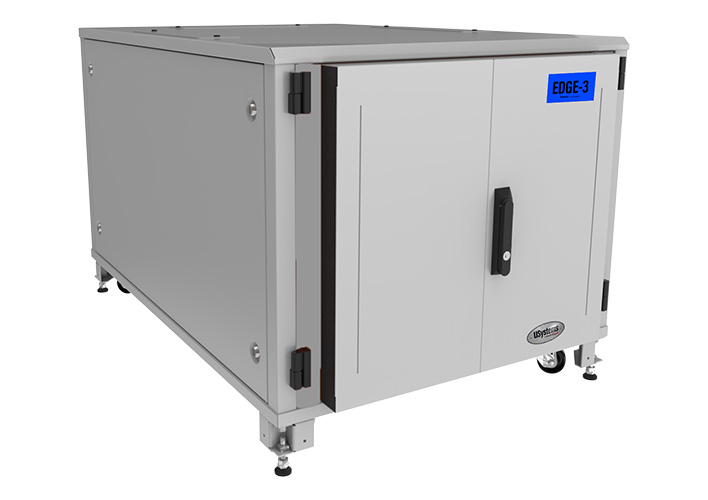

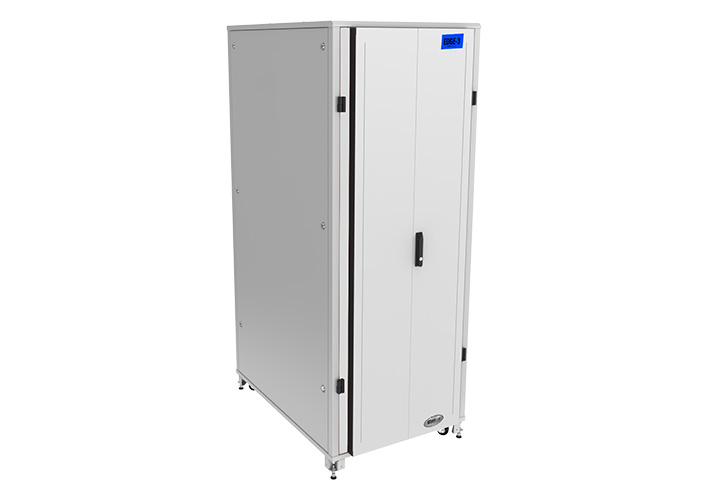

EDGE-3 Soundproof Rackmount Cabinets with Thermostatic Cooling

Models: 12U, 24U, 42U

This premium range of quiet rack enclosures provides the ultimate combination of noise reduction and air cooled thermal performance. The EDGE-3 range is a viable alternative to a costly dedicated comms room, by allowing the deployment of servers and network equipment directly in the office environment.

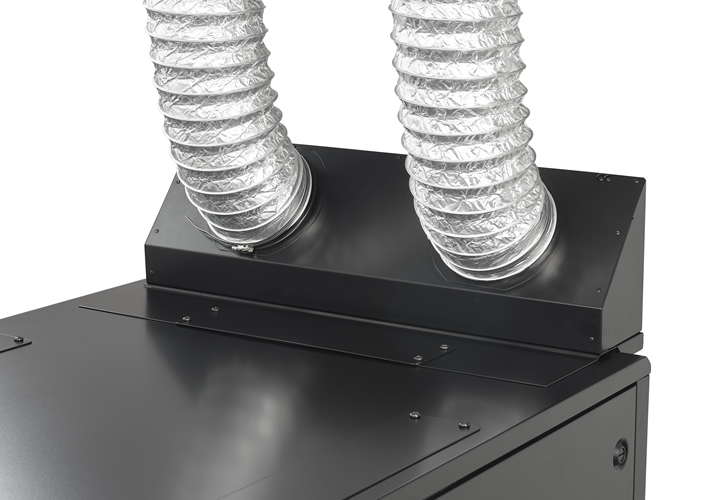

The EDGE-3 has thermostatic cooling fans and integrated environmental monitoring. Extra options include enhanced security, such as motion cameras and door contact sensors. Uniquely, a heat ducting kit can be fitted which can duct the warm air out of the room as well as the cabinet.

MORE INFO / ORDERWhat noise reduction can you expect from the EDGE-3 Micro Data Centre quiet rack cabinets?

MORE INFO / ORDER

Thermostatically controlled rear fan blowers maintain sufficient airflow throughout the rack cabinet, providing the required level of thermal dissipation, whilst optimising the level of noise the cabinet itself generates and minimising power expenditure.

The spacious internal dimensions provide ample room for orderly cable routing throughout the acoustic cabinet, with 6 useable cable entry points in the base and roof of the soundproof enclosure. A washable dust-filter, promoting extended equipment life-span and reduced maintenance costs, is optional.

Prices* - EDGE-3 Micro Data Centre Cabinet Range
Size	12U	24U	42U
Product Code	E3B-1211-24	E3B-2411-24	E3B-4211-24
MRRP	£POA	£POA	£POA

*Prices exclude VAT and delivery.

Technical Specifications - EDGE-3 Micro Data Centre Cabinet Range
Product Code	E3B-1211-24	E3B-2411-24	E3B-4211-24
Useable Height (1U = 44.45mm)	12U	24U	42U
External Cabinet Dimensions in mm (Height/Width/Depth) (includes height of castors and depth with door handles)	716 x 780 x 1265mm	1250 x 780 x 1265mm	2050 x 780 x 1265mm
Max. Distance between front & rear mounting profiles	*794mm
Internal Cabinet Depth	917mm (measured from the inside front door surface to the inside rear door surface)
Assisted Cooling Mechanism	2 x EC fan blowers located in rear doors controlled by an EMS which is mounted at the top of the rear mounting profiles.
Assembled Weight without Rackmount Equipment	140Kg	204 Kg	328 Kg
Max. Load	Dynamic Load 750 Kg / Static Load 1,500 Kg on castors Dynamic Load 1,500 Kg / Static Load 3,300 Kg on levelling feet
Castors	Heavy Duty Castors and Levelling Feet Supplied as Standard
Cable Access Dimensions	Up to 6 cable entry points can be used. Cable entry dimensions are 330 x 75mm. 1 cable entry kit is supplied to be fitted where required. Up to 5 additional cable entry kits can be supplied.
Cabinet Colour	Black RAL 9005 with Orange RAL 2009 trim as standard. Light Grey RAL 7035 with Orange RAL 2009 trim also available.

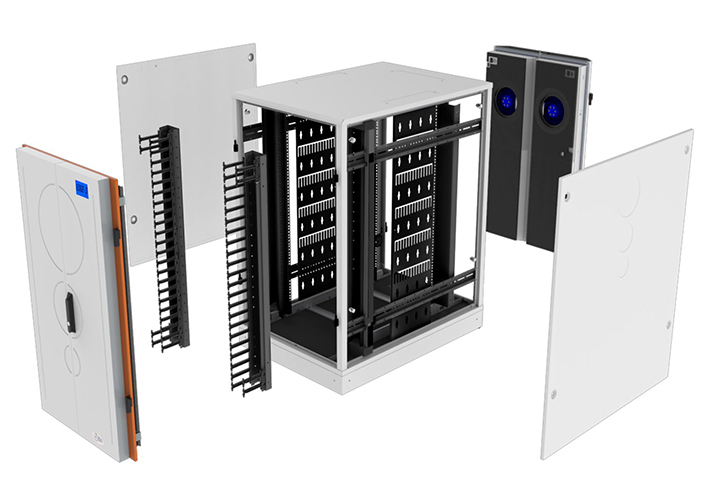

Cabinet Features	Heavy duty steel construction Removable side panels & doors for easy access Key lockable doors and side panels
Display	Touch screen LCD display
Temperature & Humidity	Up to 4 temperature and humidity sensors can be fitted. One is supplied as standard.
Security	Enhanced Security options available including motion camera and up to 6 dry door contact sensors
Alarm / Alerts	SMTP Email & LCD Display alarms report on fan speed, temperature, optional motion camera etc.
Dust Ingress Protection	Removable and washable dust filters are available as an optional accessory
Delivery	Delivered fully-assembled and ready to go

*This dimension allows a 100mm gap between the front blanking plate/equipment surface and the inner front door surface. This is recommended to allow for sufficient air-intake and, therefore, maximum cooling efficiency.

EDGE-3 Quiet Rackmount Cabiinet Benefits
Save Money - quiet racks offer a much cheaper alternative to setting up and running a server room Green - efficient and energy responsible for improved carbon footprint and better green credentials Cool - quiet racks are designed with innovative air-flow for effective thermal performance Lockable - security features are available for each rack to ensure your equipment is safe Soundproof - acoustic technologies reduce the noise to an unnoticeable level for a quiet working environment		Easy to Deploy - for most quiet rackmount cabinet solutions simply plug and go Expandable - when you need extra capacity, just add another quiet rack cabinet Portable - quiet rack enclosures are easily relocated to another room or building Dustproof - a dust-filter, made from a washable reticulated foam, is available as an optional accessory to protect your kit from harmful ingress [Part code: UC-DF12].
