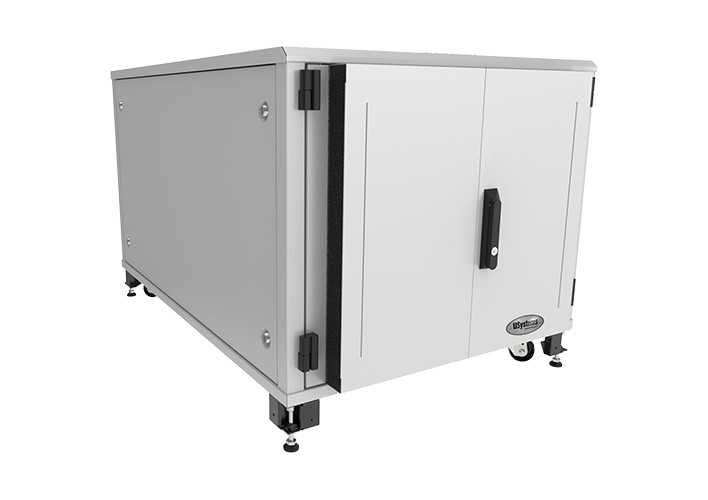

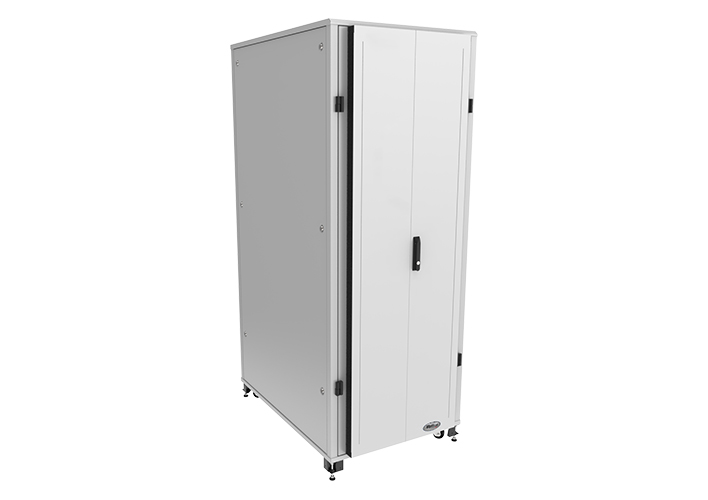

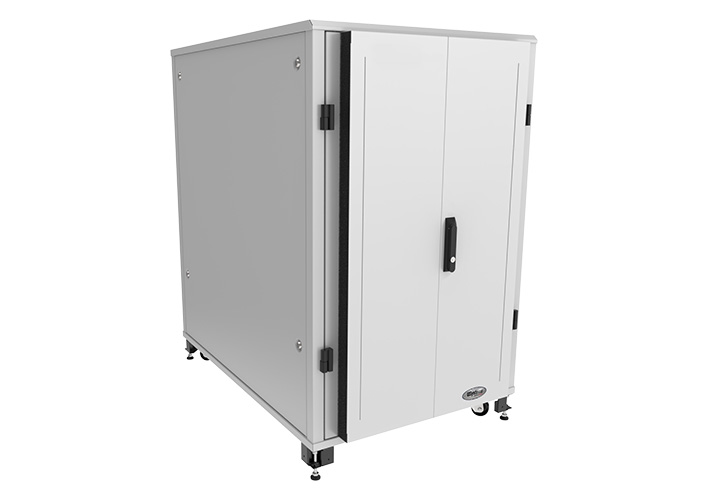

UCoustic™ Edge 9210i Active 19" Soundproof Rackmount Cabinets with Thermostatic Cooling

Models: 12U, 24U, 42U

This premium range of quiet rack enclosures provides the ultimate combination of noise reduction and air cooled thermal performance. The 9210i range is a viable alternative to a costly dedicated comms room, by allowing the deployment of servers and network equipment directly in the office environment.

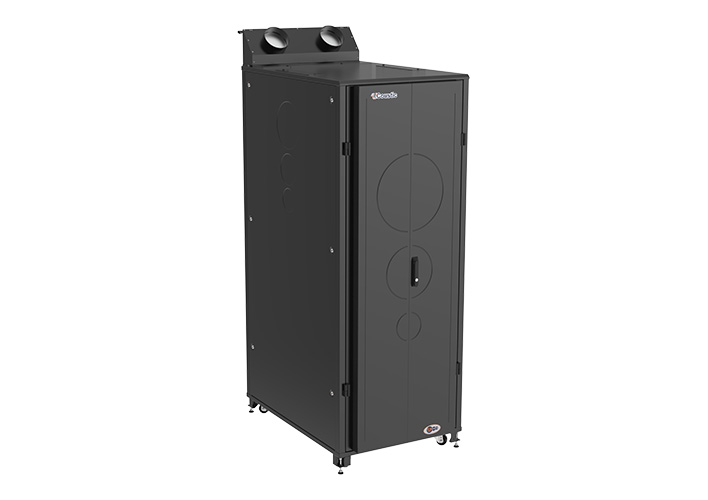

The UCoustic Edge 9210i Active has thermostatic cooling fans and integrated environmental monitoring. Extra options include enhanced security, such as motion cameras and door contact sensors. Uniquely, a heat ducting kit can be fitted which can duct the warm air out of the room as well as the cabinet.

MORE INFO / ORDERWhat noise reduction can you expect from UCoustic™ Active quiet rack cabinets?

MORE INFO / ORDER

Thermostatically controlled rear fan blowers maintain sufficient airflow throughout the rack cabinet, providing the required level of thermal dissipation, whilst optimising the level of noise the cabinet itself generates and minimising power expenditure.

The spacious internal dimensions provide ample room for orderly cable routing throughout the acoustic cabinet, with 6 useable cable entry points in the base and roof of the soundproof enclosure. A washable dust-filter, promoting extended equipment life-span and reduced maintenance costs, is optional.

Prices* - UCoustic Active 9210 Cabinet Range
Size	12U	24U	42U
Product Code	UBR-127811-AX24	UBR-247811-AX24	UBR-427811-AX24
MRRP	£2,362.70	£3,062.71	£4,092.32

*Prices exclude VAT and delivery.

Technical Specifications - UCoustic Active 9210 Cabinet Range
Product Code	UBR-127811-AX24	UBR-247811-AX24	UBR-427811-AX24
Useable Height (1U = 44.45mm)	12U	24U	42U
External Cabinet Dimensions in mm (Height/Width/Depth) (includes height of castors and depth with door handles)	716 x 780 x 1265mm	1250 x 780 x 1265mm	2050 x 780 x 1265mm
Max. Distance between front & rear mounting profiles	*794mm
Internal Cabinet Depth	917mm (measured from the inside front door surface to the inside rear door surface)
Assisted Cooling Mechanism	2 x fan blowers located in rear doors
Assembled Weight without Rackmount Equipment	133Kg	194 Kg	313 Kg
Max. Load	500 Kg
Castors	Supplied as Standard
Cable Access Dimensions	Up to 6 cable entry points can be used. Cable entry dimensions are 330 x 75mm. 1 cable entry kit is supplied to be fitted where required. Up to 5 additional cable entry kits can be supplied.
Cabinet Colour	Black with montana blue trim or Light grey as standard. Other bespoke colours or real wood veneer options available at additional cost.

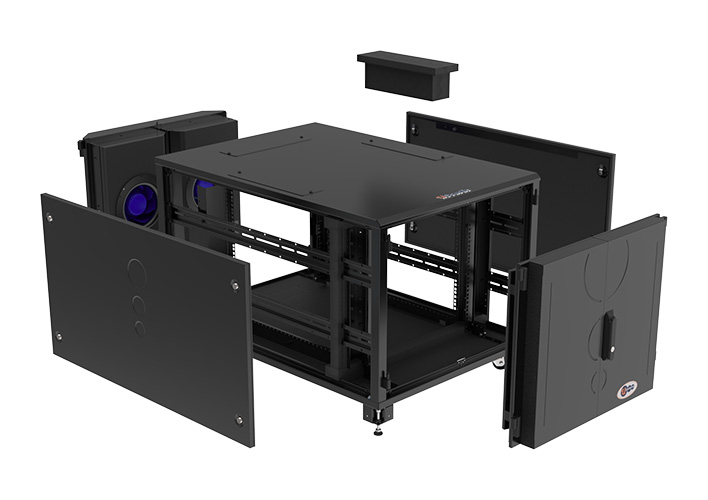

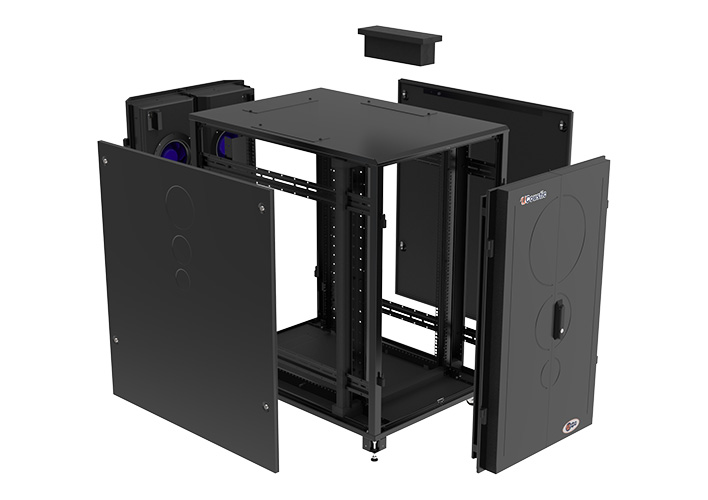

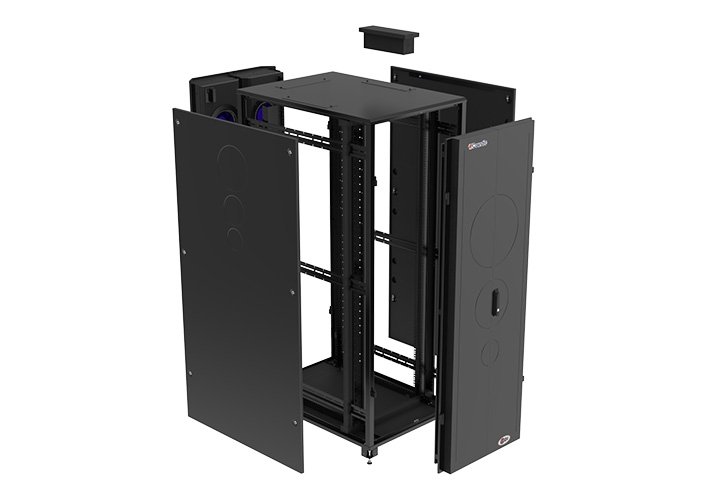

Cabinet Features	Heavy duty steel construction Removable side panels & doors for easy access Key lockable doors and side panels
Dust Ingress Protection	A removable and washable filter is available as an optional accessory
Delivery	Delivered fully-assembled and ready to go

*This dimension allows a 100mm gap between the front blanking plate/equipment surface and the inner front door surface. This is recommended to allow for sufficient air-intake and, therefore, maximum cooling efficiency.

UCoustic Active Quiet Rackmount Cabiinet Benefits
Save Money - quiet racks offer a much cheaper alternative to setting up and running a server room Green - efficient and energy responsible for improved carbon footprint and better green credentials Cool - quiet racks are designed with innovative air-flow for effective thermal performance Lockable - security features are available for each rack to ensure your equipment is safe Soundproof - acoustic technologies reduce the noise to an unnoticeable level for a quiet working environment		Easy to Deploy - for most quiet rackmount cabinet solutions simply plug and go Expandable - when you need extra capacity, just add another quiet rack cabinet Portable - quiet rack enclosures are easily relocated to another room or building Dustproof - a dust-filter, made from a washable reticulated foam, is available as an optional accessory to protect your kit from harmful ingress [Part code: UC-DF12].

top

UCoustic Quiet Rackmount Cabinet Range Accessories

UCoustic	Accessory Description	Product Code	MRRP*
	12U Dust Filter 24U Dust Filter 42U Dust Filter	UC-DF12 UC-DF24 UC-DF42	£29.15 £34.55 £39.26
	1U Blanking Panel 2U Blanking Panel 3U Blanking Panel 4U Blanking Panel 5U Blanking Panel	UC-BP-1U UC-BP-2U UC-BP-3U UC-BP-4U UC-BP-5U	£6.61 £9.10 £11.58 £13.91 £17.16
	266mm Tower Infill 532mm Tower Infill	UC-TBP-266 UC-TBP-532	£50.62 £87.42
	Plinth System	UC-PS	£109.29
	9210 Earthing Kit - 6 Leads	UC-EBK	£23.01
	Cable Entry Foam Block	UC-CEFB	£34.51
	Load Spreader 780 x 1100mm	UC-LSP	£159.05
	UCoustic Foam Anti-Recirculation Kit	UC-ARK	£27.92
	UCoustic 9210 Baying Kit	UC-BK	£26.84
	Heat Ducting Kit (Active Only)	UC-HDK-RF (Retro Fit) UC-HDK-FF (Factory Fit)	£479.35

MORE INFO / ORDER

Shelving	Accessory Description	Product Code	MRRP*
	1U Adjustable Shelf (550-950mm)	AP-AS1U-B	£51.75
	Telescopic Shelf - 720mm deep	AP-TS720	£87.00
	1U Cantilever Modem Shelf 300mm 2U Cantilever Modem Shelf 300mm	AP1U-CS-300 AP2U-CS-300	£18.63 £18.40

MORE INFO / ORDER

Static Support Rails	Description	Product Code	MRRP*
	Static Server Rails (Pair)- depth 700mm	AP-SFSSR-B	£21.00

MORE INFO / ORDER

Cable Management	Description	Product Code	MRRP*
	1U Horizontal 4 Ring Cable Tidy 2U Horizontal 4 Ring Cable Tidy	AP-CR1U-4 AP-CR2U-4	£6.77 £10.84
	12U x 200mm Cable Tidy 24U x 200mm Cable Tidy 42U x 200mm Cable Tidy	AP-CT12-200 AP-CT24-200 AP-CT42-200	£20.14 £33.66 £45.50

MORE INFO / ORDER

QuickLock Blanking Panels	Description	Product Code	MRRP*
	1U Blanking Panel 2U Blanking Panel 3U Blanking Panel 4U Blanking Panel 5U Blanking Panel	UC-BP-1U UC-BP-2U UC-BP-3U UC-BP-4U UC-BP-5U	£6.90 (1U) £9.50 (2U) £12.08 (3U) £14.50 (4U) £17.90 (5U)

MORE INFO / ORDER

Please note, the pictures, whilst as accurate and up to date as possible, are representational and the supplied product may differ slightly from the picture.

For purchase assistance call us on 0121 725 1900 or click here to contact us.

Can't see Technical Information you require for UCoustic Active Cabinets?

Please contact us on +44 (0)121 725 1900 and we will be happy to help with any technical questions on this range of quiet rack cabinets. Our staff have many years experience in the IT market, and in particular with soundproofed rackmount enclosures - we have compared and tested every 19" rack that we supply. Contact us for a quick response.

Feedback on the UCoustic ACTIVE from a Quiet Rack Cabinet Customer

"What an improvement the new server rack has made to our working day. Everyone seems to be amazed by the difference it has made and having it in the wood finish to just looks like another one of our filing cabinets" SJ, UK PR Company More customer feedback
