For Quieter Switches and Routers - UCoustic™ 8210 'Mini' Cab & 8250 Wall Box

Model: 12U Quiet Rackmount Enclosure

Both the 8210 and 8250 are perfect for solving switch and router noise. With their shorter cabinet footprint (depth 700mm) they are ideal for making quieter switches and quieter routers and reducing the noise of rackmounted audio-visual equipment.

MORE INFO / ORDERWhat noise reduction can you expect from UCoustic™ 8210 'Mini' Cabinet and 8250 Wall Box?

MORE INFO / ORDER

This range of quiet rackmount enclosures take switches and router noise to a level below that of background noise in an average office without talking, whilst providing a thermal load capacity of up to 4 kW.

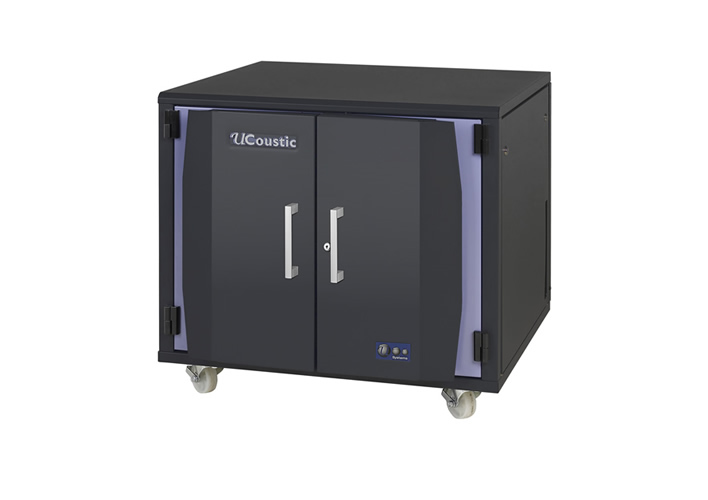

The 8210 is a compact mobile floor standing solution and the 8250 is the very first UCoustic wall-mounted quiet rackmount cabinet, both are great for locations with limited space.

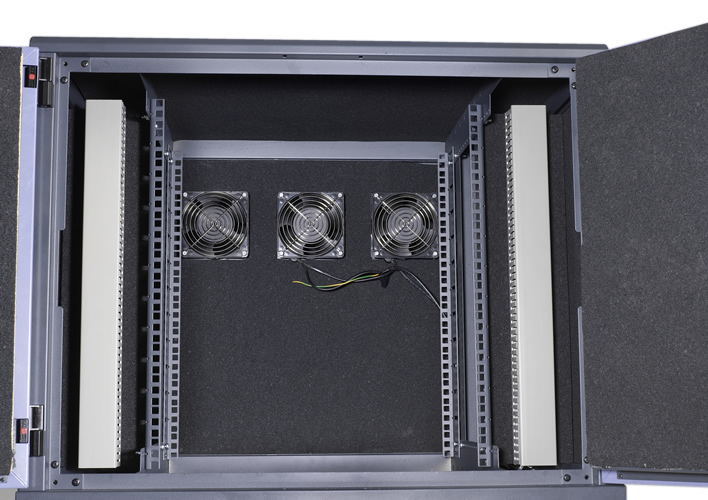

Being thermostatically controlled, the rear fans maintain sufficient airflow throughout the rack cabinet, providing the required level of thermal dissipation, whilst optimising the level of 'ambient' background noise the cabinet itself generates and minimising power expenditure.

Both quiet racks offer a washable dust-filter option for promoting extended equipment life and reduced maintenance costs.

Prices* - UCoustic 8210 'Mini' Cab & 8250 Wall Box Range
	Floorstanding	Wall Mounted
Range	8210	8250
Product Code	UC1-1282-AA	UC3-1282-AA
MRRP	£1,408.01	£1,408.01

*Prices exclude VAT and delivery.

Technical Specifications - UCoustic 8210 'Mini' Cab & 8250 Wall Box Range
	8210	8250
Product Code	UC1-1282-AA	UC3-1282-AA
Useable Height (1U = 44.45mm)	12U	12U
External Cabinet Dimensions in mm (Height/Width/Depth)	716 x 780 x 755mm (includes castors)	620 x 780 x 700mm
Max. Distance between front & rear mounting profiles	*380mm This allows a 50mm gap between rear mounting profiles and rear fan unit.
Max. Rackmount Unit Depth	*460mm (measured from front blanking plate surface to inside of rear door. This is reduced to 430mm at the top of the cabinet, opposite the rear cooling fans)
Assisted Cooling Mechanism	3 x ultra-quiet rear fans
Assembled Weight without Rackmount Equipment	73 Kg
Max. Ditributed Load (total equipment weight)	250 Kg
Castors	Supplied as Standard	N/A
Cable Access Dimensions	Side cable access point x 2 : 40 x 145mm
Cabinet Colour	Black with Montana Blue trim
Cabinet Features	Heavy Duty Steel Construction Removable side panels & doors for easy access Key lockable doors and side panels
Dust Ingress Protection	A Removable and washable filter is available as an optional accessory
Delivery	Delivered fully-assembled and ready to go

*This dimension allows a minimum 43.2mm gap between the front blanking plate/equipment surface and the inner front door surface. This is recommended to allow for sufficient air-intake and, therefore, maximum cooling efficiency.

UCoustic 8210 'Mini' Cab & 8250 Wall Box Benefits
Save Money - quiet racks offer a much cheaper alternative to setting up and running a server room Green - efficient and energy responsible for improved carbon footprint and better green credentials Cool - quiet racks are designed with innovative air-flow for effective thermal performance Lockable - security features are available for each rack to ensure your equipment is safe		Soundproof - acoustic technologies reduce the noise to an unnoticeable level for a quiet working environment Easy to Deploy - for most quiet rackmount cabinet solutions simply plug and go Expandable - when you need extra capacity, just add another quiet rack cabinet Portable - quiet rack enclosures are easily relocated to another room or building

top

UCoustic Quiet Rackmount Cabinet Range Accessories

UCoustic	Accessory Description	Product Code	MRRP*
	12U Dust Filter 24U Dust Filter 42U Dust Filter	UC-DF12 UC-DF24 UC-DF42	£29.15 £34.55 £39.26
	1U Blanking Panel 2U Blanking Panel 3U Blanking Panel 4U Blanking Panel 5U Blanking Panel	UC-BP-1U UC-BP-2U UC-BP-3U UC-BP-4U UC-BP-5U	£6.61 £9.10 £11.58 £13.91 £17.16
	266mm Tower Infill 532mm Tower Infill	UC-TBP-266 UC-TBP-532	£50.62 £87.42
	Plinth System	UC-PS	£109.29
	9210 Earthing Kit - 6 Leads	UC-EBK	£23.01
	Cable Entry Foam Block	UC-CEFB	£34.51
	Load Spreader 780 x 1100mm	UC-LSP	£159.05
	UCoustic Foam Anti-Recirculation Kit	UC-ARK	£27.92
	UCoustic 9210 Baying Kit	UC-BK	£26.84
	Heat Ducting Kit (Active Only)	UC-HDK-RF (Retro Fit) UC-HDK-FF (Factory Fit)	£479.35

MORE INFO / ORDER

Shelving	Accessory Description	Product Code	MRRP*
	1U Adjustable Shelf (550-950mm)	AP-AS1U-B	£51.75
	Telescopic Shelf - 720mm deep	AP-TS720	£87.00
	1U Cantilever Modem Shelf 300mm 2U Cantilever Modem Shelf 300mm	AP1U-CS-300 AP2U-CS-300	£18.63 £18.40

MORE INFO / ORDER

Static Support Rails	Description	Product Code	MRRP*
	Static Server Rails (Pair)- depth 700mm	AP-SFSSR-B	£21.00

MORE INFO / ORDER

Cable Management	Description	Product Code	MRRP*
	1U Horizontal 4 Ring Cable Tidy 2U Horizontal 4 Ring Cable Tidy	AP-CR1U-4 AP-CR2U-4	£6.77 £10.84
	12U x 200mm Cable Tidy 24U x 200mm Cable Tidy 42U x 200mm Cable Tidy	AP-CT12-200 AP-CT24-200 AP-CT42-200	£20.14 £33.66 £45.50

MORE INFO / ORDER

QuickLock Blanking Panels	Description	Product Code	MRRP*
	1U Blanking Panel 2U Blanking Panel 3U Blanking Panel 4U Blanking Panel 5U Blanking Panel	UC-BP-1U UC-BP-2U UC-BP-3U UC-BP-4U UC-BP-5U	£6.90 (1U) £9.50 (2U) £12.08 (3U) £14.50 (4U) £17.90 (5U)

MORE INFO / ORDER

Please note, the pictures, whilst as accurate and up to date as possible, are representational and the supplied product may differ slightly from the picture.

For purchase assistance call us on 0121 725 1900 or click here to contact us.

Can't see Technical Information you require for UCoustic 8210 'Mini' Cab & 8250 Wall Box Cabinets?

Please contact us on +44 (0)121 725 1900 and we will be happy to help with any technical questions on this range of quiet rack cabinets. Our staff have many years experience in the IT market, and in particular with soundproofed rackmount enclosures - we have compared and tested every 19" rack that we supply. Contact us for a quick response.
