Cabinet Range Features- Extreme Noise Reduction – up to 28.5 dB(A)
- High Thermal Dissipation – up to 2.75 kW
- Extra Internal width for orderly cable management & routing
- Optional Washable Dust Filter on the Enclosure Air Intake - helps protect rackmounted servers and other 19" equipment.
- Various Floor Cable Entry Options - Sealable (to prevent noise leakage)
What Noise Reduction Can I Expect from UCoustic Wood Quiet Rackmount Cabinets?
Comparing Manufacturers' claims for noise reduction can be very misleading because of widely differing test methods.
Also, enclosures with similar decibel noise-reduction ratings may sound very different to the human ear, as some acoustic racks dampen the more noticeable noise frequencies better than others.
To help you make an informed choice we have independently tested all the Quiet Rack ranges side by side enabling us to recommend the right Quiet Rack to meet your needs. You are also welcome to compare the racks for yourself in our unique Quiet Rack Demo Room.
Contact us by phone on 01494 240100 (outside the UK: +44 1494 240100) or send a request
for more information.
We
can find the best quiet rack cabinet for your requirements. See our extensive range
Distributed by Acousti Products.
UCoustic™ 9210 Premium Wood Range of 19" Soundproof Rackmount Cabinets
Models: 12U, 24U, 42U in both Passive and Active
This latest addition to the UCoustic range adds the stunning quality of real wood veneer to the noise reduction and air cooled thermal performance of Passive and Active UCoustic. So for situations where only luxurious wood will do you can have a stunning finish without compromising on functionality.
The 9210 range is a viable alternative to a costly dedicated comms room, by allowing the deployment of servers and network equipment directly in the office environment. This range of quiet rack cabinets will reduce equipment noise to a level below that of background noise in an average office without talking, whilst providing a thermal load capacity of up to 7.2 kW (equivalent to 37 single processor servers and peripherals).
Also, the spacious internal dimensions provide ample room for orderly cable routing throughout the 9210 cabinet, with varied cable entry options to the bottom of the enclosure.

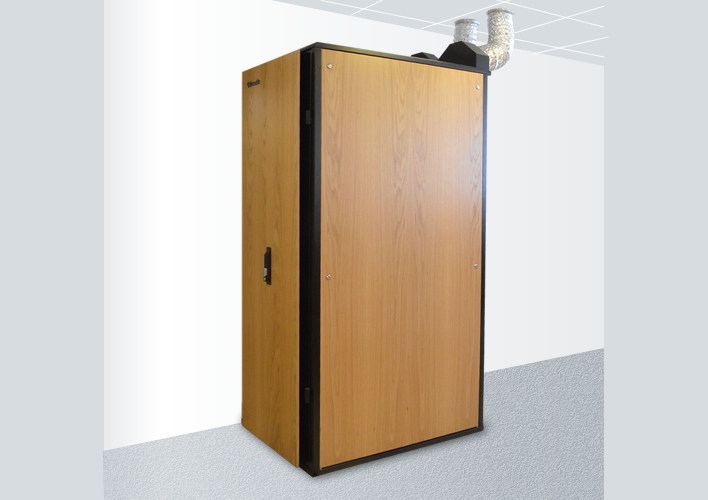

Oak or Maple are the normal real wood finishes but virtually any wood type is available (at additional cost). The standard format is the simplicity of wooden door contrasting by the elegant dark grey finish. Both wood tops and sides are available for a small additional charge (see images below). Please note that the UCoustic Premium Wood is a fire enclosure (unlike some alternatives) unless the wood sides option is taken.
The inclusion of a washable dust-filter, promoting extended equipment life-span and reduced maintenance costs, is optional throughout the 9210 range.
Find out what noise reduction you can expect from UCoustic Wood quiet rack cabinets
Click on a number 2 to see different wood options:
Prices* - UCoustic Active & Passive Cabinets With Premium Wood Front Doors and Top**:
Please note, these prices are for oak and maple wood only. Beech, ash, cherry, mahogany and walnut wood are available at additional cost. Please contact us for prices.
| Size | 12U |
24U |
42U |
| Active Product Code: | UC1-PWD-1292-AA |
UC1-PWD-2492-AA |
UC1-PWD-4292-AA |
| Active Price: | £1,963.00 |
£2,809.59 |
£3,631.89 |
| Passive Product Code: | UC2-PWD-1292-AA |
UC2-PWD-2492-AA |
UC2-PWD-4292-AA |
| Passive Price: | £1,602.50 |
£2,359.81 |
£2,768.41 |
Optional Wood Side Panels:
| Size | 12U |
24U |
42U |
| Side Panels Product Code: | UC-PWD-SP12 |
UC-PWD-SP24 |
UC-PWD-SP42 |
| Side Panels Price: | £71.52 |
£100.14 |
£171.67 |
Optional Wood Top Cover** (42U Only):
| Size | 12U |
24U |
42U |
| Wood Top Product Code: | As standard |
As standard |
UC-PWD-TC |
| Wood Top Price: | £150.20 |
**Due to the height of the 42 UCoustic, the wood top cover is optional. The 12
and 24U Sizes come with the top cover as standard.
NB the enclosure
with wooden doors, top cover and sides is not a fire enclosure.
Technical Specifications - UCoustic Premium Wood 9210 Cabinet Range
| Product Code | UC1/2-PWD-1292-AA |
UC1/2-PWD-2492-AA |
UC1/2-PWD-4292-AA |
| Useable Height (1U = 44.45mm) | 12U |
24U |
42U |
| External Cabinet Dimensions in mm (Height/Width/Depth) (includes height of castors) |
716 x 780 x 1200mm |
1250 x 780 x 1200mm |
2050 x 780 x 1200mm |
| Max. Distance between front & rear mounting profiles | *750mm |
||
| Max. Rackmount Unit Depth | *890mm (measured from front blanking plate surface to inside of rear door) |
||
| Cooling Mechanism | Silent Self-Venting Cabinet Design |
||
| Assembled Weight without Rackmount Equipment | 109.5 Kg
|
166.5 Kg
|
275 Kg
|
| Max. Ditributed Load (total equipment weight) | 500 Kg |
||
| Castors | Supplied as Standard |
||
| Cable Access Dimensions | Min. One Floor cable access point: 100 x 310mm (additional floor cable access points can be fitted upon request) |
||
| Cabinet Colour | Wood / Grey |
||
| Cabinet Features | Heavy Duty Steel Construction Removable side panels & doors for easy access Key lockable doors and side panels |
||
| Dust Ingress Protection | A Removable and washable filter is available as an optional accessory |
||
| Delivery | Delivered fully-assembled and ready to go |
||
*This dimension allows a minimum 50mm gap between the front blanking plate/equipment surface and the inner front door surface. This is recommended to allow for sufficient air-intake and, therefore, maximum cooling efficiency.
UCoustic Range Accessories
|
|
||||
|
|
||||
|
|
||||
|
|
||||
|
|
||||
|
|
||||
|
|
Shelving
|
|
||||
|
Static Support Rails
|
|
Cable Management
|
|
Power Distribution Units: We offer a complete range of PDU's with IEC320, Schuko, NEMA and UK 3-pin socket/plug combinations. Prices are available upon request.
Please note, the pictures, whilst as accurate and up to date as possible, are representational and the supplied product may differ slightly from the picture.
For purchase assistance call us on 01494 240100 or click here to contact us.
Can't see Technical Information you require for UCoustic Premium Wood Cabinets?
Please contact us on +44 (0)1494 240100 and we will be happy to help with any technical questions on this range of quiet 19" rackmount cases. Our staff have many years experience in the IT market, and in particular with quiet rackmount cabinets - we have compared and tested every 19" rackmount enclosure that we supply. Contact us for a quick response.
Feedback from a Quiet Rack Cabinet Customer
"Immediately noticed a difference, we are very pleased. It looks good and stylish and doing the job it's supposed to!"
Software Solutions Company, Hampshire, UK
*Prices exclude VAT and delivery.
